If the size of the bag exceeds this range, we will consider customization.
| Power supply | 380v 3phase 50Hz |
| Compressed air | about 5～8kgf/cm²，0.4m³/min |
| Drive method | Cam |
| Fill station | 2 |
| Sealing style | straight/net type |
| Workstation | 8/10 station |
| Bag Width | 80-270mm |
| Bag Length | 100-380mm |
| Pack compacity | 10g-3kg Up to 90 Pouches/Min |
| Various bag types | Stand up pouch, flat pouch, pe pouch, gusset pouch, zipper pouch, retort pouch, spout pouch |
| Noise from running machine | within 75db |

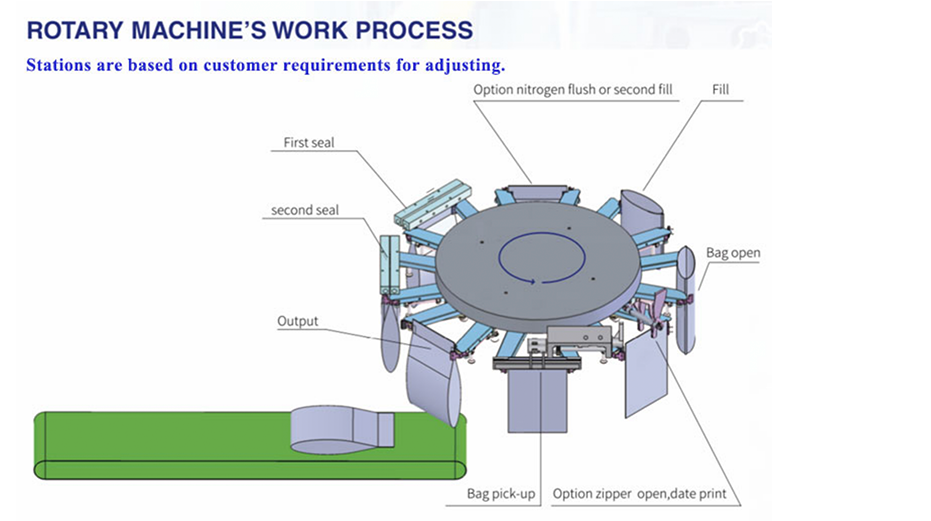

1.Bag pick-up

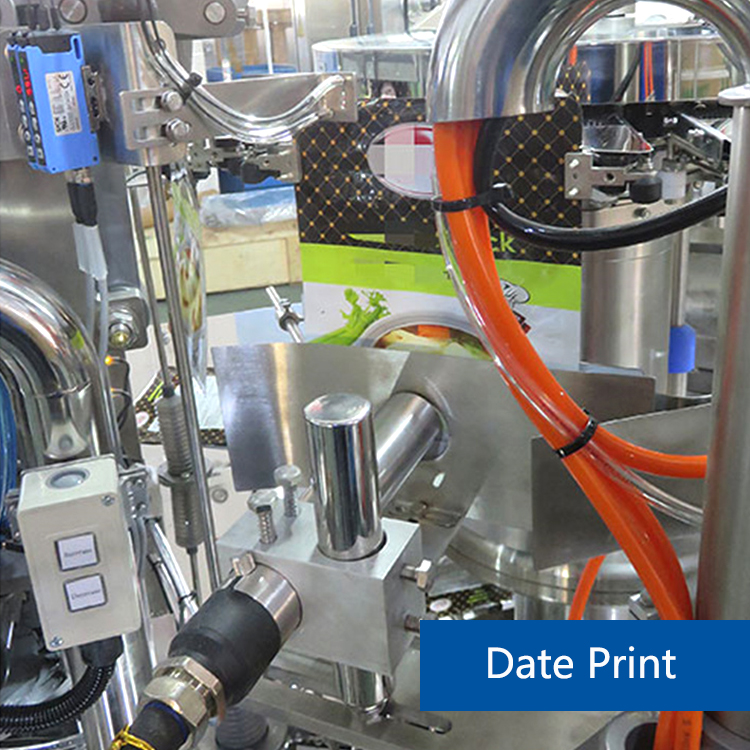

2.Optional Zipper open and Date print

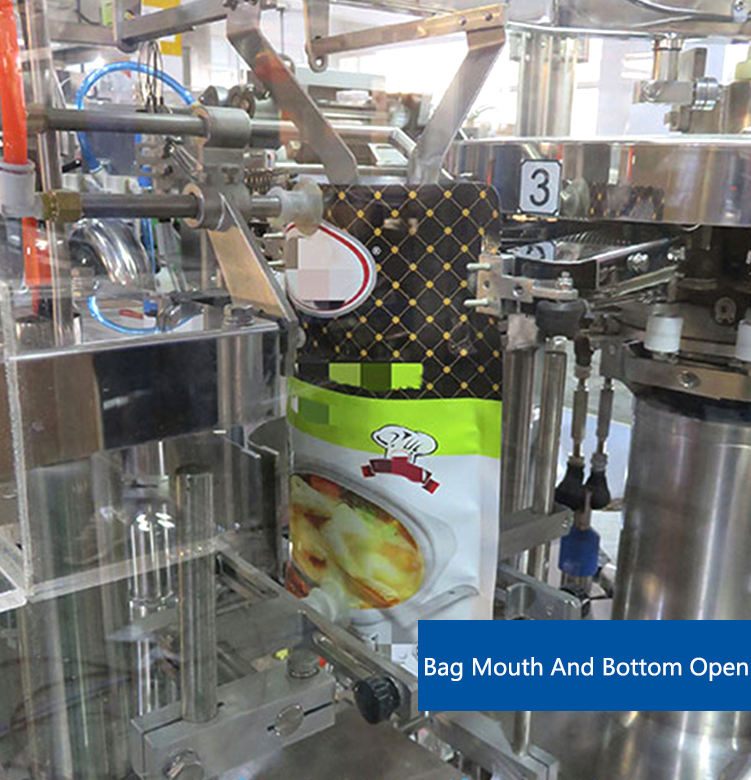

3.Bag mouth and bottom open

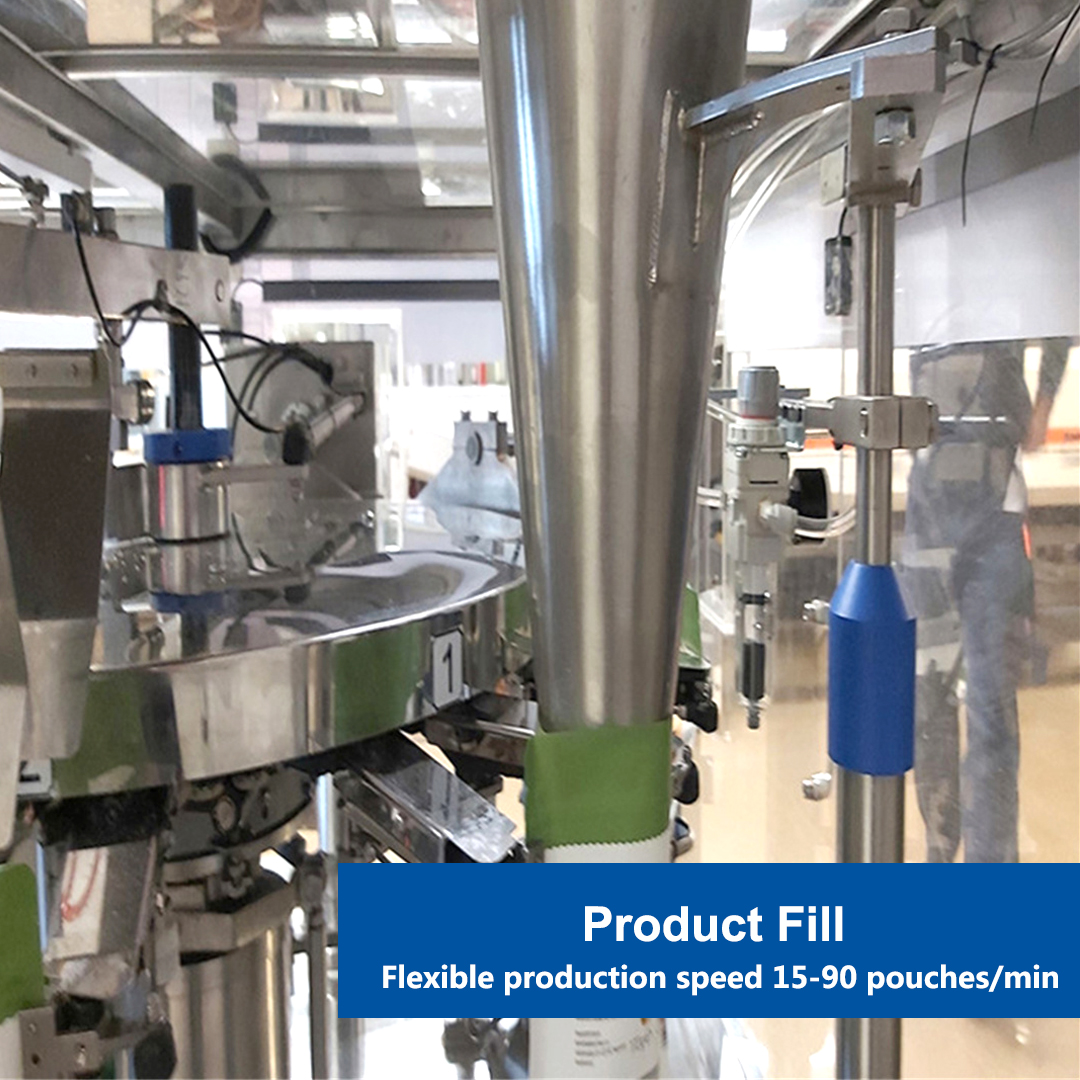

4.Product fill
5.Option: Solid :Nitrogen charge,Powder: Bag mouth clean,Liquid:Secondary filling

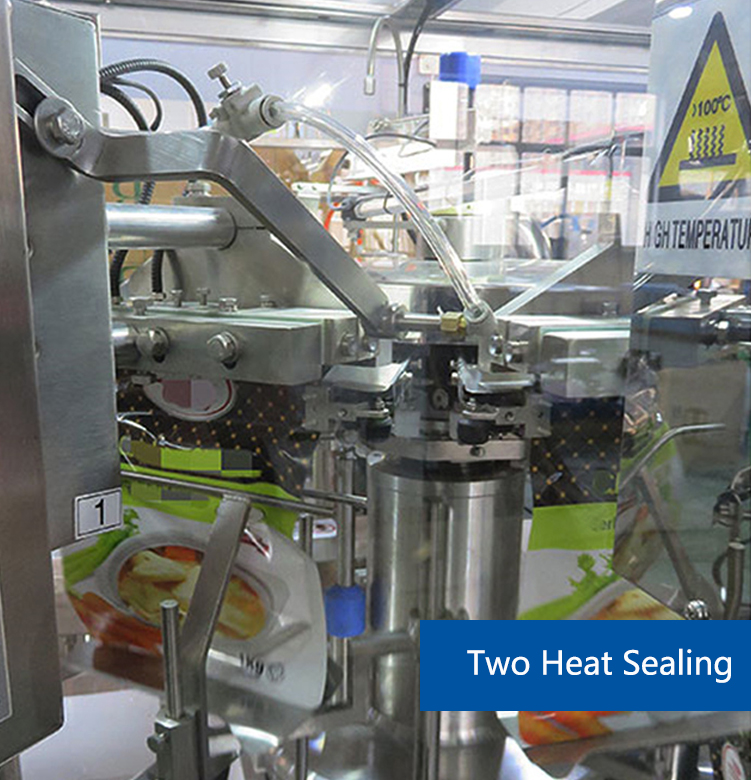

6.First seal
7.Second seal
8.Output
Stable & Easy；Save Energy & Material；Remote Control & Customized Service
With a device can against sealing vacant pouches to make sure that if there is no fill, there will be no seal.
With a device can against sealing vacant pouches to make sure that if there is no fill, there will be no seal.
Color-changing Times:1000
Patented gripper system
maximum precision
flexible pouch type: stand-up pouches with zipper or corner spouts, quad pouches and pouches with customers’ design
Flexible production speed15-90pouches/min.
Long work time and lifetime can work 24 hours a day, only one day off for maintenance per month.
Easy to operate and maintain, one person is enough.
High profitability can replace at least 7 workers for packaging.
Low energy and maintenance costs, only a few spare parts need to change.
Fast delivery of spare parts, for example, max 3 normal days to reach you
Inquiry and consulting support, professional packing solution for free. We will be a consultant for clients about the technical problem before order, provide drawing specification, design customized project, analyze and solve technical problem.
Machine videos for your reference.
Sample packing testing support.
View our Factory.
Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
Oversea service for our engineer is available. Clients need to afford the visa, tickets, accommodation, hotel and 120 USD per day.The problem components are free during the warranty time
Technical support
We will keep your machine's detailed file in the computer, such as the machine info, product info, your requirement and
suggestion, technician's advice and so on. And we will follow up and make feedback about the machines performance regularly. We guarantee that we will solve your problems as soon as possible.
Training
We can provide training service for you in machines' installation and commissioning. After all required production materials are ready in your factory, we will send technician to adjust the machine in good performance. As per the technician's instruction, the workers can learn how to connect power line, commissioning, machine working principles and the maintenance during operation and so on. So they will be more familiar with the operation of packing machine by training.
