High efficiency
Up to 60 Bags/Min

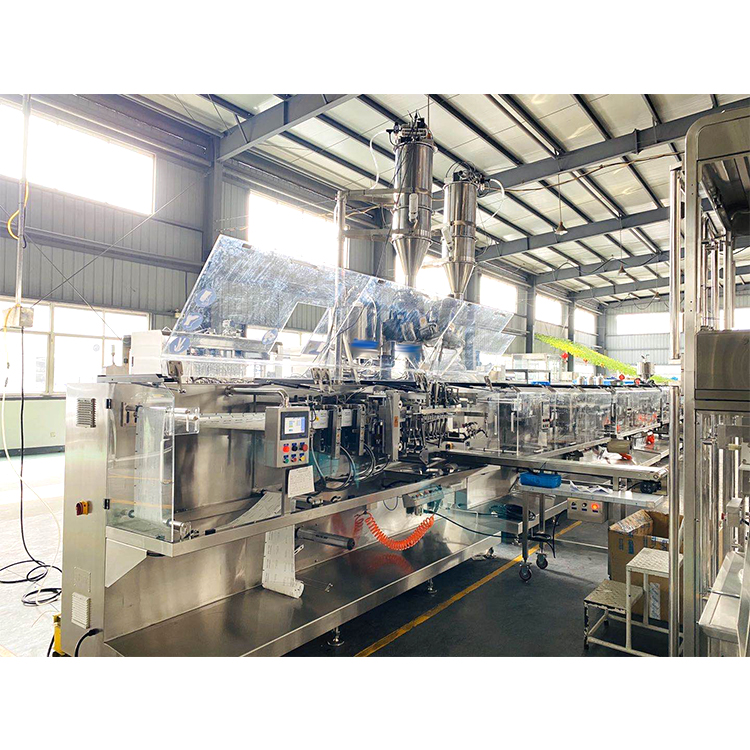

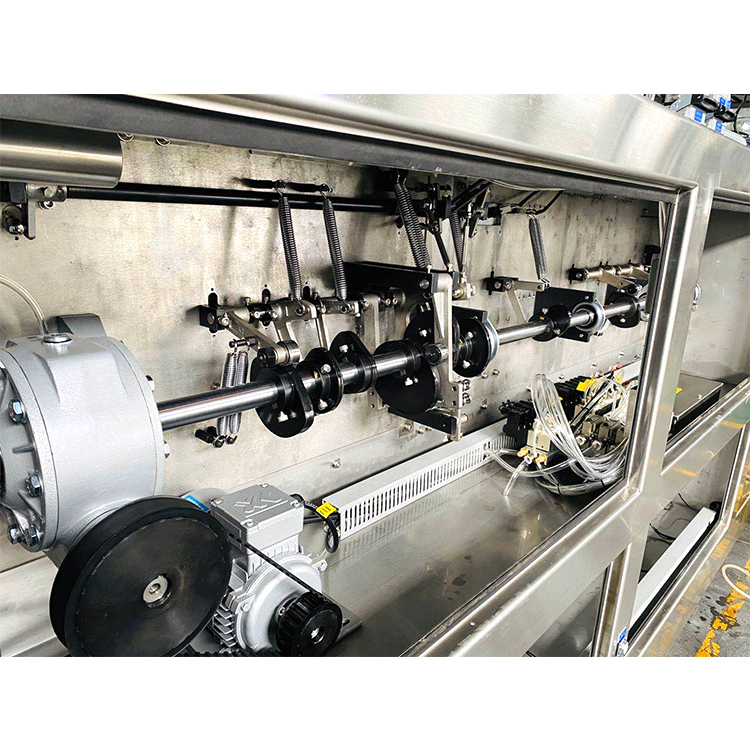

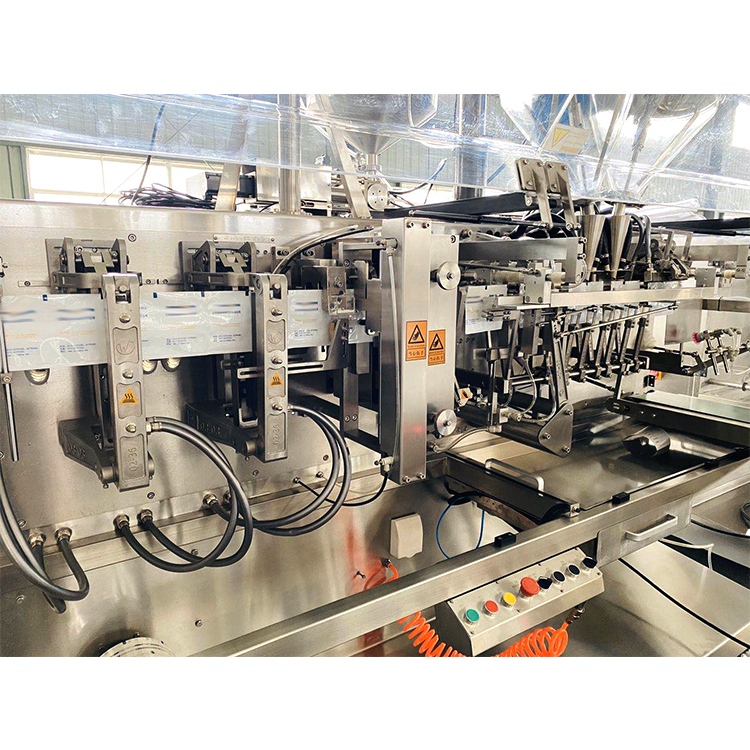

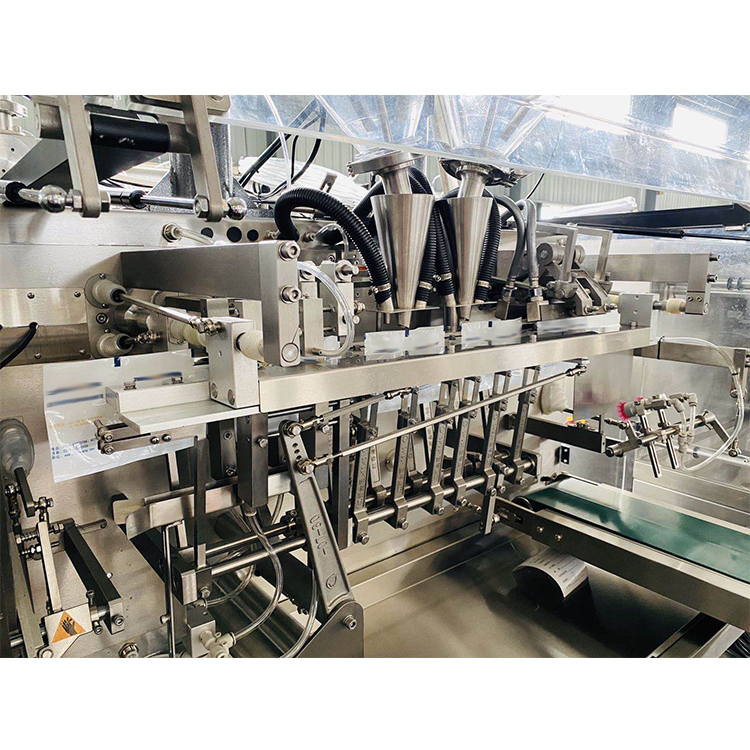

Automatic Horizontal Pouch Packing Machine includes motor film release, bag forming, bag bottom sealing, middle sealing, vertical sealing, servo bag pulling, shearing, bag opening and filling, bag transfer, bag top sealing and other mechanisms. The motor drives each cam on the main shaft to complete the coordinated action of each mechanism, and the encoder on the main shaft feeds back the position signal.
Under the programmable control of PLC, the functions of film roll →bag forming →bag making → filling → sealing → finished product conveying are realized, and the full-automatic production of film roll bag packaging is realized.
The machine has reasonable design and novel appearance. It adopts standard stripe sealing and changes the filler. It can realize the automatic filling of powder,granule, suspending agent, emulsion, water agent and other materials on the machine. The whole machine is made of SUS304, which has good anti-corrosion effect on highly corrosive materials. Plexiglass cover prevents dust leakage, which is more environmentally friendly and pollution-free.
| Capacity | 40-60Pouches/Min(Single pouch) (40-60)×2=80-120Pouches/Min(Double pouches) According to the physical properties of the raw materials and the different feeding |
| Applicable Pouches pattern | Single pouch, Double pouches |
| Applicable Pouches Size | Single pouch: 70×100mm(Min) ; 180×220mm(Max) Double pouches: (70+70)×100mm(Min) (90+90)×160mm(Max) |
| Volume | Regular : ≤100ml(Single pouches) ≤50×2=100 ml(Double pouches) *According to the physical properties of the raw materials and the different feeding devices.. |
| Precision | ±1% *According to the physical properties of the raw materials and the different feeding devices |
| Roll film size | Inner diameter: Φ70-80mm Outer diameter: ≤Φ500mm |
| Dust removal pipe diameter | Φ59mm |
| Power supply | 3P AC380V 50Hz/6KW |
| Air consumption | 840L/Min |
| External Dimension | 3456×1000×1510mm(L×W×H) |
| Weight | About 1950Kg |
Inquiry and consulting support, professional packing solution for free. We will be a consultant for clients about the technical problem before order, provide drawing specification, design customized project, analyze and solve technical problem.
Machine videos for your reference.
Sample packing testing support.
View our Factory.
Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
Oversea service for our engineer is available. Clients need to afford the visa, tickets, accommodation, hotel and 120 USD per day.The problem components are free during the warranty time
Technical support
We will keep your machine's detailed file in the computer, such as the machine info, product info, your requirement and
suggestion, technician's advice and so on. And we will follow up and make feedback about the machines performance regularly. We guarantee that we will solve your problems as soon as possible.
Training
We can provide training service for you in machines' installation and commissioning. After all required production materials are ready in your factory, we will send technician to adjust the machine in good performance. As per the technician's instruction, the workers can learn how to connect power line, commissioning, machine working principles and the maintenance during operation and so on. So they will be more familiar with the operation of packing machine by training.
